The ASRock B550M Steel Legend is a micro-ATX motherboard built around AMD’s B550 chipset, supporting 3rd Gen Ryzen and future AM4 processors. It sits in the middle of ASRock’s lineup, offering a mix of features that appeal to builders who want a reliable foundation without paying for high-end extras. In practice, this board is often used in compact gaming rigs, home office PCs, and general-purpose builds where space is limited but performance demands are moderate.

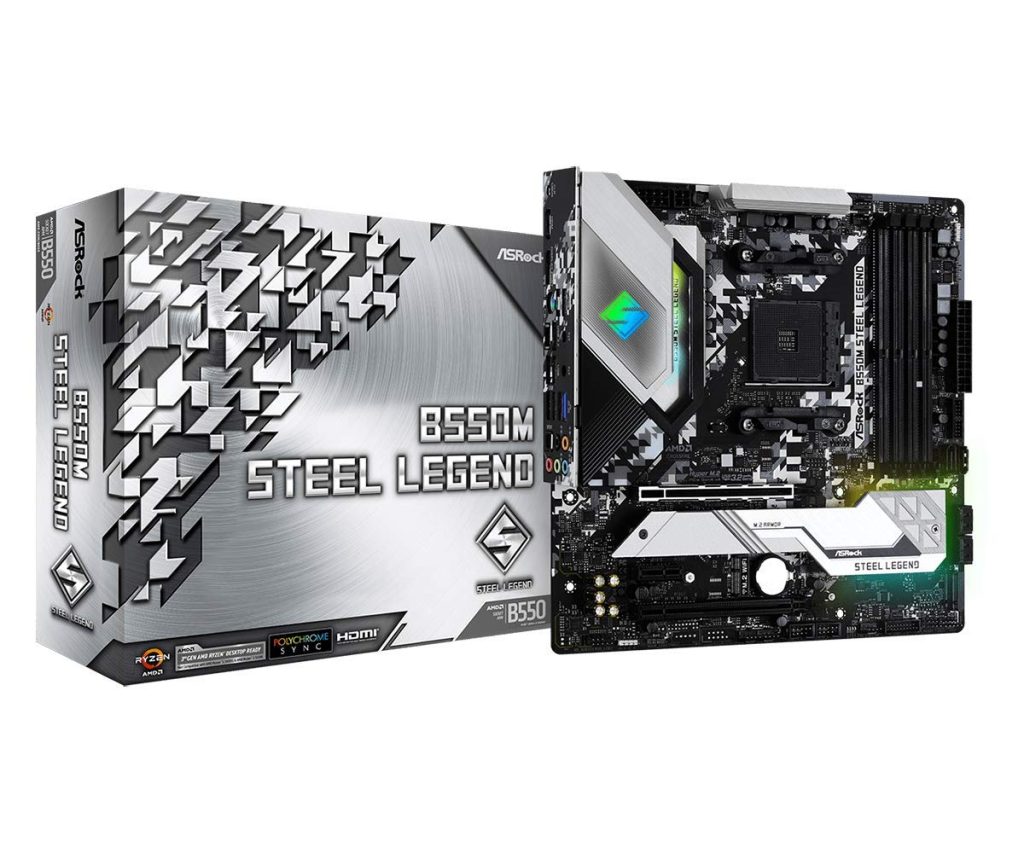

One of the first things you’ll notice is the board’s aesthetic: a black PCB with silver and white heatsinks and a printed steel legend design. It’s a look that can fit into both subtle and flashy builds, though it may not match every color scheme. More importantly, the layout is sensible. The CPU socket is surrounded by heatsinks that don’t interfere with most coolers, and the DIMM slots are positioned to avoid conflicts with large air coolers. The primary M.2 slot sits above the primary PCIe x16 slot, which is a common placement that allows for easy access, but it can be blocked by a thick graphics card. A second M.2 slot is located below the primary PCIe slot, but it lacks a heatsink and runs at PCIe 3.0 x4 speeds, a limitation of the B550 chipset.
For connectivity, the B550M Steel Legend covers the essentials. There are four SATA III ports, which should be enough for most users, though those with multiple drives may need to consider expansion cards. USB connectivity includes a USB 3.2 Gen2 Type-C port on the rear I/O, along with several USB 3.2 Gen1 and USB 2.0 ports. The board also has a front-panel USB 3.2 Gen1 header and a USB 3.2 Gen2 Type-C header, which is a nice touch for modern cases. Networking is handled by a Realtek RTL8125BG 2.5G Ethernet controller, but there’s no built-in Wi-Fi, so you’ll need to add a card or use a USB adapter if you need wireless. The audio solution is a Realtek ALC1200 codec, which is decent for onboard audio but won’t satisfy audiophiles.
In terms of power delivery, the B550M Steel Legend uses a 10-phase design for the CPU, which is adequate for most Ryzen 5 and Ryzen 7 processors, including overclocking. However, if you’re planning to use a high-end Ryzen 9 or overclock aggressively, you might want a board with more robust VRM cooling. The heatsinks on the VRM are substantial but not massive, and under sustained heavy loads, they can get warm. For typical gaming and productivity tasks, though, they should be fine.
Real-world usage context: This board is a good fit for a mid-range gaming PC with a Ryzen 5 5600X or Ryzen 7 3700X, paired with a single graphics card and a couple of storage drives. It’s also suitable for a home theater PC or a compact workstation. The micro-ATX form factor allows for smaller cases, but you’ll still have room for a full-size GPU and a decent CPU cooler. The lack of Wi-Fi might be a drawback for some, but many users prefer wired connections for stability.
Compared to other B550 motherboards, such as the MSI B550M Mortar or the Gigabyte B550M Aorus Pro, the Steel Legend holds its own. It offers a similar feature set, though the MSI board often has better VRM cooling and the Gigabyte board has dual M.2 heatsinks. The Steel Legend’s main advantage is its aesthetic and often competitive pricing. However, if you need more USB ports or Wi-Fi, you might need to step up to a more expensive model.
Who it is for: This motherboard is ideal for budget-conscious builders who want a reliable board for a mid-range Ryzen system. It’s also a good choice for those who prefer a micro-ATX form factor without sacrificing too many features. Who it is not for: Enthusiasts with high-end Ryzen 9 CPUs and multiple GPUs should look elsewhere, as should users who need integrated Wi-Fi or extensive storage options. The lack of a second M.2 heatsink and limited SATA ports may also be a dealbreaker for some.
In summary, the ASRock B550M Steel Legend is a well-rounded micro-ATX motherboard that delivers solid performance for its price. It doesn’t excel in any one area, but it doesn’t have any major flaws either. If you’re building a mid-range AM4 system and don’t need the extra bells and whistles, it’s worth considering.
