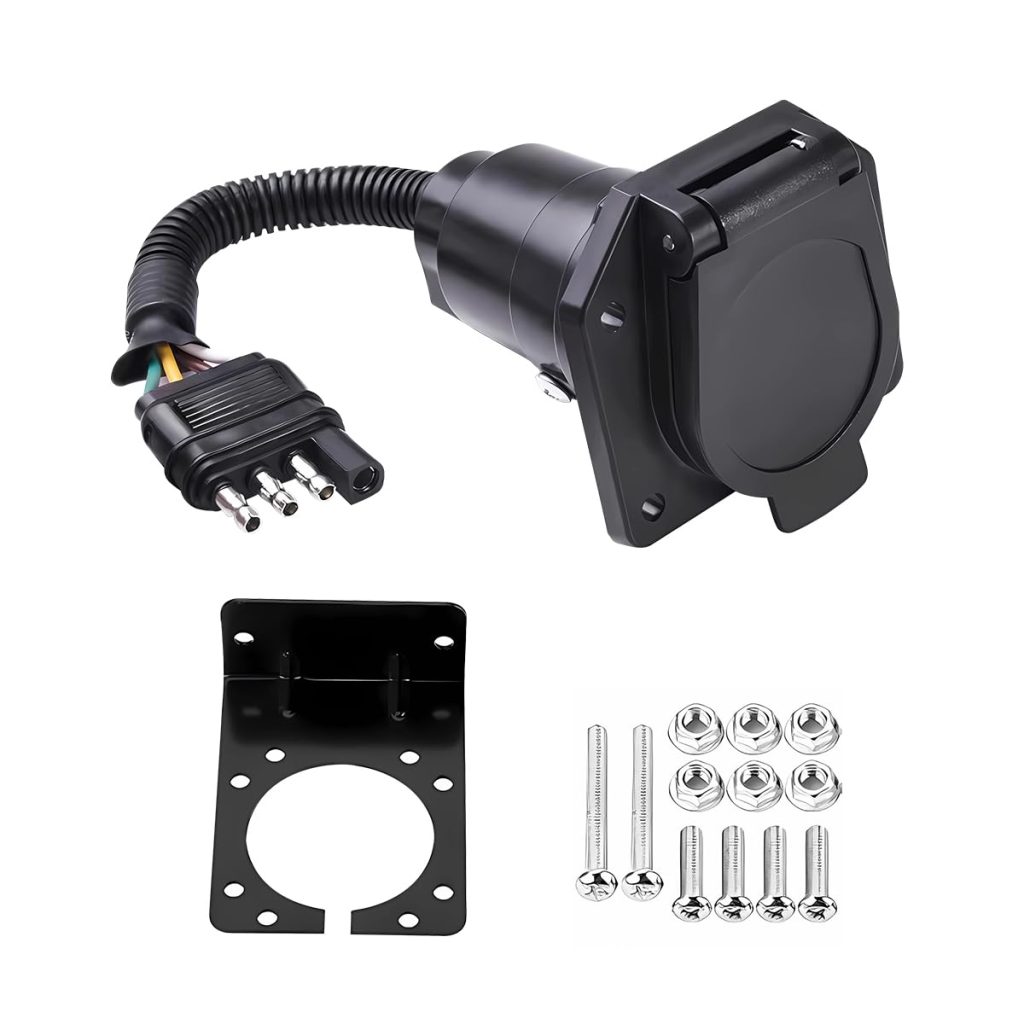

Trailer wiring adapters tend to be one of those parts you buy out of necessity rather than enthusiasm. The KHGUZ 4-Pin to 7-Way Round Blade Trailer Adapter is a good example: a small, purpose-built connector that solves a specific mismatch between a tow vehicle’s 4-way flat harness and a trailer that expects a 7-pin round blade connection. If you have ever stood behind a truck holding two incompatible plugs, you already understand why this category of product exists.
The adapter is designed to convert a 4-way flat output into a 7-pin blade connection, which is the more common interface on larger trailers, RVs, and some utility trailers. The “reverse” in the product name is worth noting, because it signals the direction of conversion. This is not a generic one-size-fits-all adapter, and buyers should confirm their setup matches before ordering. The included mounting bracket is a useful detail, since loose adapters tend to dangle against the bumper or get lost in the toolbox.
Where this adapter fits in real use
The most common scenario is a vehicle with a factory or aftermarket 4-way flat harness that needs to connect to a trailer with a 7-pin blade plug. That might be a lighter truck towing a utility trailer, an SUV pulling a small camper, or a work vehicle moving equipment. In these situations, the adapter acts as a bridge so the trailer’s lighting circuits can receive signal from the tow vehicle.
Installation is generally straightforward. The 4-way flat end plugs into the vehicle harness, the 7-pin blade end connects to the trailer, and the bracket provides a place to secure the adapter so it doesn’t swing freely. Because the adapter is passive, there is no wiring or splicing required in most cases, which is a meaningful advantage for anyone who doesn’t want to cut into factory harnesses.
What it actually does and does not do
It is important to be clear about the electrical scope here, because 4-way to 7-pin conversion is often misunderstood. A 4-way flat connector carries ground, tail/running lights, left turn/brake, and right turn/brake. A 7-pin blade connector adds circuits for electric trailer brakes, auxiliary power, and reverse lights. An adapter like this one physically bridges the connector types, but it cannot create circuits that aren’t present on the tow vehicle side.
- Lighting functions: Tail, running, turn, and brake signals pass through as expected when the vehicle harness is functioning correctly.
- Electric brakes: These generally require a separate brake controller and a dedicated circuit; a passive adapter does not supply that function on its own.
- Auxiliary power and reverse: These pins may be present on the 7-pin end but will not be live unless the vehicle is wired for them.
- Mounting bracket: Provides a fixed attachment point, which helps reduce strain on the connector and keeps the adapter accessible.
That limitation is not unique to KHGUZ; it applies to nearly all passive 4-to-7 adapters. Buyers who need full 7-pin functionality, including trailer brakes, should expect to install a dedicated 7-pin harness or a brake controller rather than relying on an adapter alone. The product is best understood as a connector converter, not a circuit expander.
Build and handling impressions
From an editorial standpoint, the adapter appears to follow the standard molded-plastic construction common in this price tier. The housing is rigid, the pins are metal, and the bracket is a simple metal or plastic piece intended to hold the connector in place. These adapters are exposed to road spray, dust, and vibration, so long-term durability depends heavily on the quality of the pin contacts and the sealing around the molded body. Realistic expectations matter here: inexpensive adapters can develop intermittent contact over time, especially if the pins are not kept clean. A small amount of dielectric grease on the contacts is a reasonable preventive habit.
One trade-off worth mentioning is that adding an adapter introduces an extra connection point in the wiring chain. Each connection is a potential source of voltage drop or corrosion. For basic lighting, this is usually not a problem, but on trailers with marginal grounds or older harnesses, an adapter can occasionally expose weaknesses that were already present. That is not a defect of this product so much as a reality of daisy-chained connectors.
How it compares to alternatives
The main alternatives are a hardwired 7-pin harness replacement or a multi-adapter kit that covers several connector types. A hardwired harness is the more robust long-term solution and is necessary if you need brakes or auxiliary power, but it involves more installation effort and cost. A multi-adapter kit offers flexibility if you tow different trailers, though the individual adapters in those kits are often similar in build quality to this one. The KHGUZ unit sits in the middle: more permanent than a loose plug adapter because of the bracket, but less capable than a full harness conversion.
Who should consider it
This adapter makes sense for someone with a 4-way flat vehicle harness who occasionally tows a trailer equipped with a 7-pin blade plug and only needs lighting functions. It is also reasonable as a backup or emergency connector to keep in the vehicle. It is not the right choice for anyone who needs electric trailer brakes, charging power to a trailer battery, or reverse lights on the trailer, since those functions require wiring the vehicle does not provide through a 4-way connection. Nor is it ideal for heavy towing where connection reliability is critical; in those cases, a dedicated 7-pin installation is the more sensible investment.
Overall, the KHGUZ adapter is a utilitarian part that does a narrow job. It is not a upgrade to a vehicle’s towing capability, and it should not be marketed or purchased as one. Used within its actual limits, with clean contacts and a secure bracket mount, it can serve as a practical bridge between mismatched connectors.
