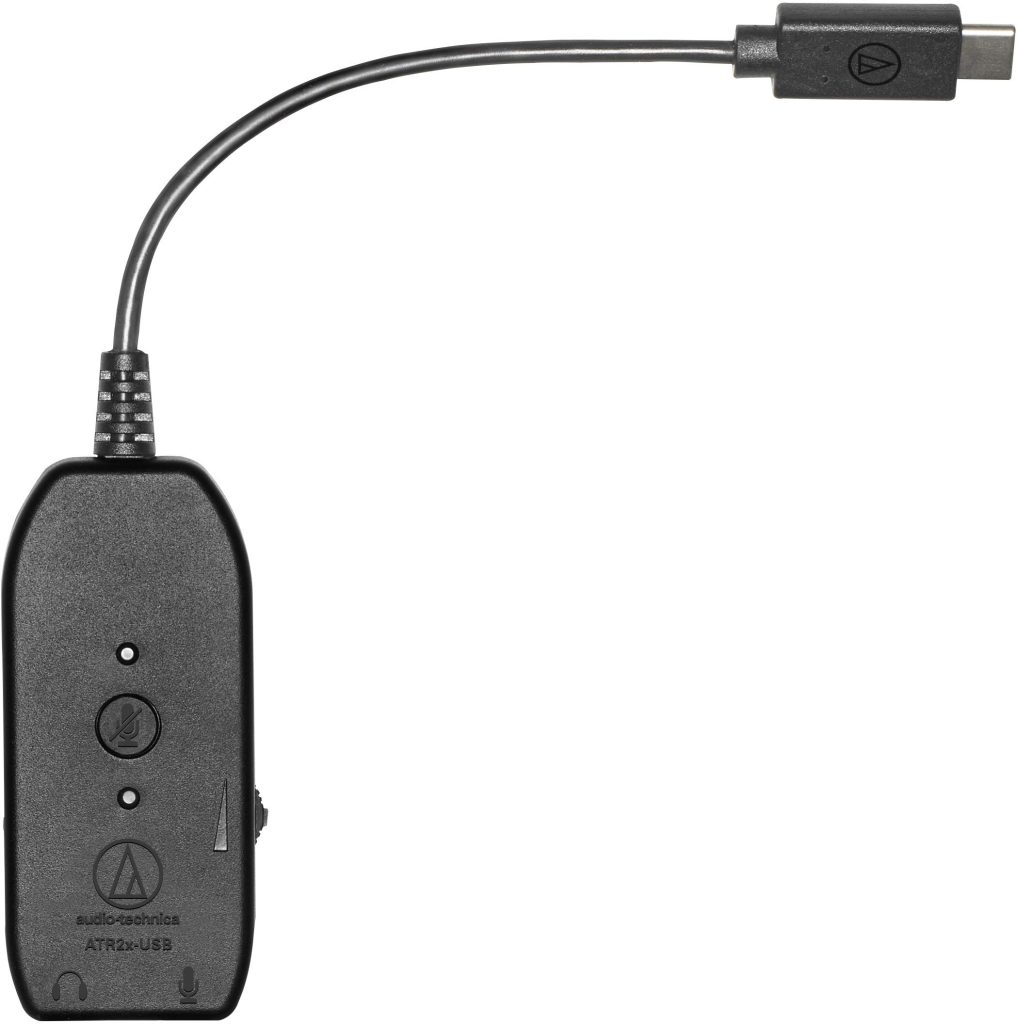

The Audio-Technica ATR2x-USB is a compact adapter that converts a 3.5mm analog audio signal to USB digital audio. It’s designed for connecting microphones, headsets, or other analog audio sources to a computer or USB-equipped device. In practice, it serves as a straightforward bridge between older analog gear and modern digital setups, often used for podcasting, video calls, or voice recording where a dedicated audio interface might be overkill.
At its core, the ATR2x-USB is a plug-and-play device. It requires no drivers on most operating systems, including Windows, macOS, and Linux, and it draws power directly from the USB bus. The adapter features a single 3.5mm TRS input jack, which accommodates stereo or mono signals, and a USB-A connector for the host device. A small LED indicator lights up when the device is receiving power, providing a basic status check. The unit is bus-powered, so no external power supply is needed, which keeps the setup minimal.
In real-world use, the ATR2x-USB is often employed to connect a lavalier microphone to a laptop for video conferencing, or to plug a gaming headset with a 3.5mm jack into a PC that lacks a dedicated microphone input. It can also be used with a mixing console’s output to record audio directly to a computer. The adapter is recognized by the operating system as a standard USB audio device, and the input level can typically be adjusted through the system’s sound settings or within the recording software. Latency is generally low enough for monitoring purposes, though not imperceptible.
One of the key functional features is its compatibility with plug-in power, which means it can supply a small voltage to power condenser microphones that require it, such as some lavalier models. However, it does not provide phantom power (+48V), so it won’t work with studio condenser microphones that need external power. The ATR2x-USB also includes a headphone jack? Actually, no—the ATR2x-USB does not have a headphone output. That’s a notable limitation: you cannot directly monitor the audio being recorded through the adapter. For monitoring, you’d need to rely on your computer’s existing audio output or a separate headphone amp.
Another limitation is the lack of gain control. The adapter provides a fixed amount of gain, and while you can adjust the digital level in software, the analog gain is set. This means that if you’re using a dynamic microphone with a low output, you might need to boost the signal in software, which can introduce noise. Similarly, loud sources might clip the input if the analog signal is too hot. There’s no physical knob to tweak, so users must manage levels entirely in the digital domain. This is a trade-off for simplicity and cost.
Compared to a dedicated USB audio interface, such as the Focusrite Scarlett Solo or Behringer U-Phoria UM2, the ATR2x-USB is far more basic. Those interfaces offer microphone preamps with adjustable gain, phantom power, headphone outputs, and often better analog-to-digital converters. However, they are larger, more expensive, and require more setup. The ATR2x-USB is better seen as a problem-solver for specific situations: when you need to get a 3.5mm source into a computer with minimal fuss and don’t require the flexibility of a full interface. It’s also more portable, fitting easily into a laptop bag.
In terms of audio quality, the ATR2x-USB delivers adequate performance for voice communication, podcasting, and casual recording. It won’t satisfy audiophiles or professional musicians who need pristine, low-noise recordings. The converter is likely 16-bit, 48kHz or similar, which is standard for consumer-grade USB audio. Background noise is present but not overwhelming; it’s comparable to typical built-in sound cards. For critical listening or high-fidelity music production, this adapter would be a weak link.
Who is it for? The ATR2x-USB is suitable for casual users who need to connect a 3.5mm microphone or audio source to a computer without installing additional hardware. It’s a good fit for students, remote workers, and hobbyists who want a no-frills solution. It’s also handy for troubleshooting: if a computer’s built-in mic input is broken, this adapter can serve as a quick replacement. On the other hand, it’s not for professionals or serious content creators who need adjustable gain, phantom power, or monitoring capabilities. Those users should invest in a proper audio interface. Also, if you require stereo input for two separate sources, note that the ATR2x-USB’s 3.5mm jack is TRS, so it can accept stereo, but it’s primarily designed for a single microphone or line-level source.
In summary, the Audio-Technica ATR2x-USB is a utilitarian adapter that does one job: converting 3.5mm analog audio to USB. It’s simple, portable, and works without drivers. But it lacks gain control, phantom power, and monitoring, which limits its use to basic applications. For the price, it’s a reasonable option for those who need a quick fix, but it’s not a replacement for a full-featured audio interface. As always, consider your specific needs before purchasing.
